电动矩形百叶式调节蝶阀

电动矩形百叶式调节蝶阀



电动矩形百叶式调节蝶阀配置电动执行机构广泛应用于建材、冶金、矿山、电力等生产过程,能自动控制或手动控制调节管路中介质流量,蝶板采用百叶多轴体结构,流体均匀,启闭力矩小,动作灵敏,性能可靠。阀体材料:碳钢、不锈钢主要技术参数

公称压力PN0.005MPa
适用温度-30~350℃
适用介质粉尘、含尘气体
泄漏量≤3%
阀门启闭时间25秒
输入信号(直流)Ⅱ型0~10mA,Ⅲ型4~20mA
输入通道3个
输入电阻Ⅱ型200Ω,Ⅲ型250Ω
电源电压220V±20V,50HZ
介质流速≤25m/s

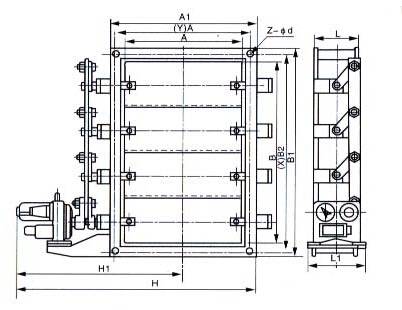

主要外形连接尺寸

A×BA1×B1A2×B2LL1H1HbZ-ФdXY输线执行器Wt/Kgs
320×180375×105400×240180245580735816-14532DKJ-210184
320×250375×395400×330180245625825816-14532DKJ-210194
400×200455×255500×330200245610805816-18532DKJ-210215
400×320455×375500×420200245870915816-18532DKJ-210263
500×200555×255600×300220245610805816-18533DKJ-210272
500×400555×455600×500220245370915820-18553DKJ-210292
630×320685×375730×4202202456108051020-18733DKJ-210322
630×400685×455730×5002202457109951024-18753DKJ-210354
800×400855×455900×5002403006709451024-18754DKJ-310443
800×630855×685900×7302403007109951028-18774DKJ-310590
1000×5001070×5701130×83026030079010751024-23754DKJ-310640
1000×8001070×8701130×93026030090512701028-23774DKJ-310770
1250×6301320×7001380×760280300100515051032-23975DKJ-310790
1250×10001320×10701380×1130280300110517051032-23975DKJ-310920
1400×8001470×8701530×930300385107515751036-231175DKJ-410940
1400×12501470×13201530×1380300385130020251040-231195DKJ-4101240
1600×10001670×10701730×1130320385117517751036-231175DKJ-4101540
1600×12501670×13201730×1380320385130020251040-231195DKJ-4101680
1800×12501870×13201930×1380340420145021751044-231396DKJ-5101846
1800×14001870×14701930×1530340420152523251048-2313116DKJ-5101953
2000×12502070×13202130×1380360420145021751048-231596DKJ-5102170
2000×18002070×16702130×1730360420162025201252-2315116DKJ-5102392
2500×18002570×18702630×1730420450169525951256-2317118DKJ-610A2740
2500×20002570×20702630×2130420450189529951264-2317158DKJ-610A2801
2800×25002870×25702930×2630440450214531951272-2319178DKJ-610A3118
3200×28003270×28703330×2930480480232538251280-23211910DKJ-6103535
3600×32003670×32703730×3330520480252542251288-23232110DKJ-6104018
4000×36004070×46704130×47305604802725482512100-23272310DKJ-6104532
